49186

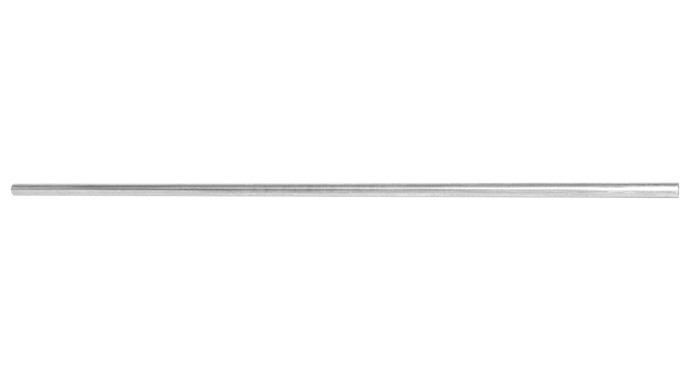

Stainless Steel Straight Tubing
- Stainless steel lasts 10 to 12 times longer than low carbon steel tubing
- Type T-409 stainless steel tubing is used for easier bending
Note: Bending characteristics of stainless steel tubing are substantially different than low carbon steel tubing. Listed below are important factors in successfully bending stainless steel tubing.
- Wing die (back) pressure may need to be increased to prevent backwall collapse.
- The tube weld seam should be located 90° from the inside and outside of any severe bends.
- Wing dies must be in good condition & in alignment throughout the entire bending arc.
- Bends should be made in one continuous operation at a slow rate of speed.
- Bends should not be made tighter than two times pipe diameter.6. Equipment must be in proper operating condition.
-
Tubing OD: 2.5"
-
Tubing Length: 10'
-
Tubing Gauge: 17
